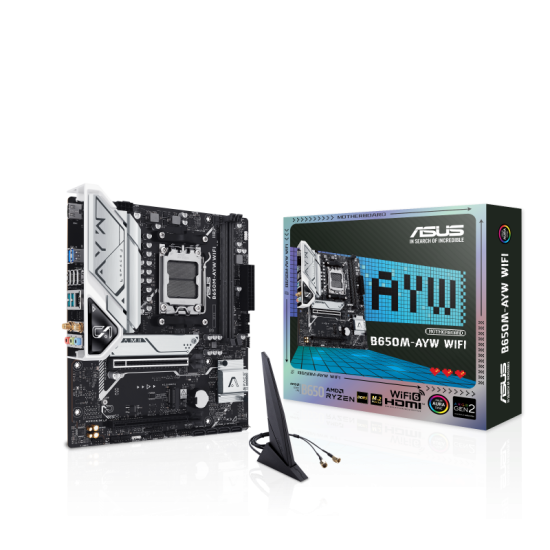

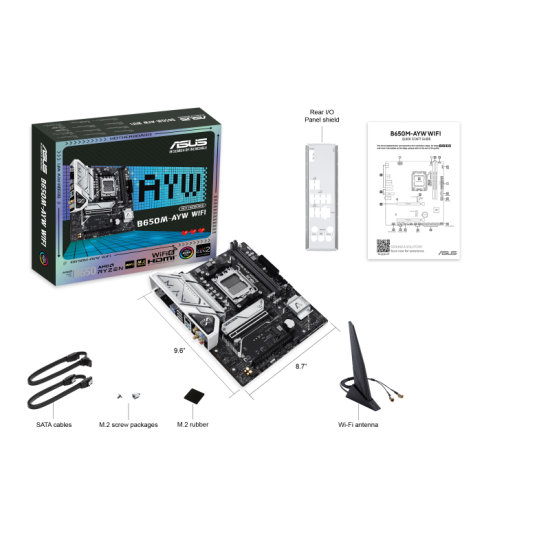

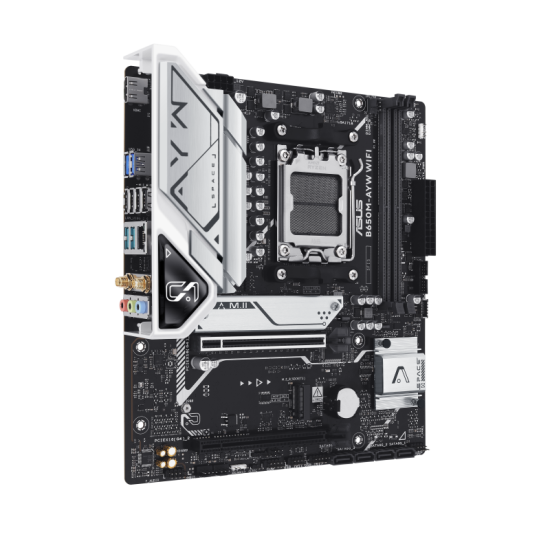

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

The ASUS B650M-AYW WIFI is a DDR5 Micro-ATX motherboard that supports desktop processors from the AMD Ryzen 9000, 8000, and 7000 series. Featuring two DIMM slots with a maximum capacity of 96GB DDR5 memory and supporting speeds up to 8000+ MT/s (OC), it is built on the AMD B650 chipset. Performance and stability are provided by the dual-channel memory design in conjunction with AMD Extended Profiles for Overclocking (EXPO) and OptiMem II. With cutting-edge technologies including PCIe 5.0 slots, WiFi 6, and two-way AI noise reduction, the ASUS B650M-AYW WIFI Motherboard is perfect for both professional and gaming applications. With one HDMI connector and the ability to support 4K at 60Hz as defined by HDMI 2.1, this ASUS AM5 DDR5 motherboard provides strong graphics support. This ASUS B650M-AYW WiFi AM5 DDR5 Micro-ATX Motherboard has one PCIe 4.0 x16 expansion slot, allowing it to support the newest graphics cards. Two M.2 slots and four SATA 6Gb/s connectors provide enough storage options, with AMD RAIDXpert2 Technology supporting PCIe RAID 0/1/10 and SATA RAID 0/1/10. The onboard Realtek 2.5Gb Ethernet offers fast and stable wired networking, while a wide range of USB ports, including USB 10Gbps, 5Gbps, and 2.0, provide vast connectivity possibilities. The Realtek 7.1 Surround Sound High Definition Audio CODEC powers the audio capabilities of the ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard, which supports 24-bit/192 kHz playback, audio shielding, premium capacitors, and dedicated PCB layers. Internal I/O connectors include CPU and chassis fan headers, M.2 slots, SATA ports, and various USB headers, allowing for easy and versatile system configurations. The ASUS B650M-AYW WIFI Motherboard includes ASUS 5X Protection III, Q-Design, and sophisticated thermal solutions to improve longevity, ease of installation, and cooling efficiency.
