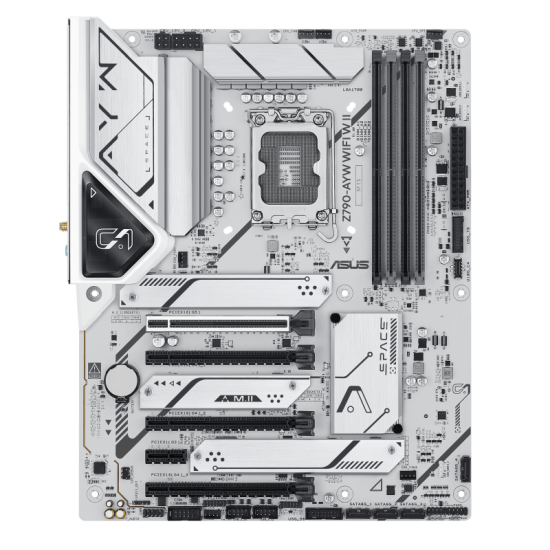

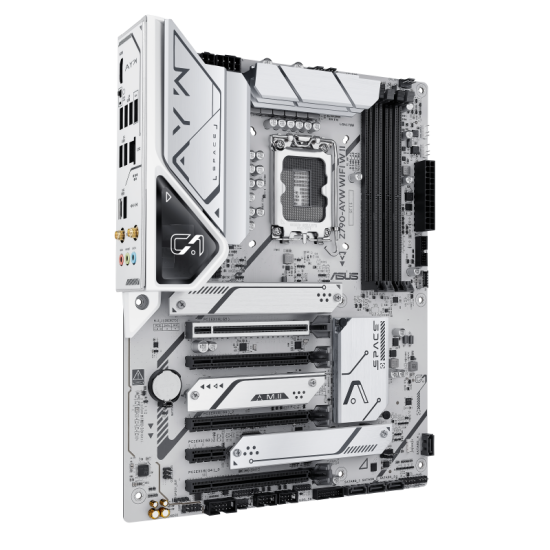

ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard

ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard

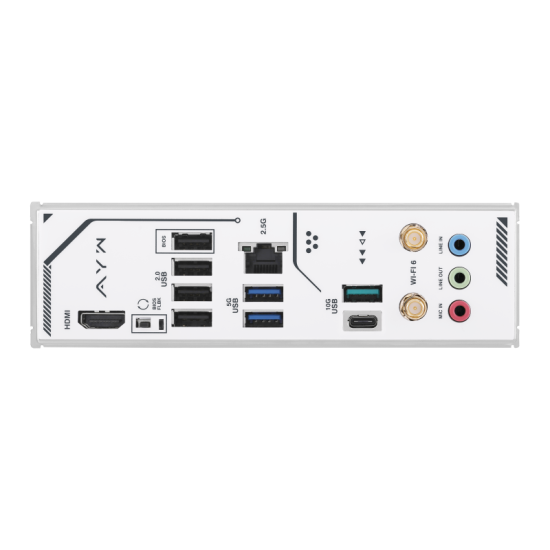

The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard is a high-performance platform that supports Intel's newest 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron CPUs. The ASUS motherboard employs the powerful Intel Z790 chipset. It supports Intel Turbo Boost Technology 2.0 and 3.0, allowing for more powerful and efficient computing. It has four DDR5 DIMM slots and can support up to 192GB of high-speed memory at rates of up to 8000MHz (OC). Intel XMP and OptiMem II technology are also included for improved memory reliability and performance. The ASUS Z790-AYW WIFI W II motherboard has numerous expansion slots, including a PCIe 5.0 x16 slot and several PCIe 4.0 and 3.0 slots for sophisticated graphics and peripherals. Storage options are extensive, with three M.2 slots and four SATA 6Gb/s connectors that allow PCIe and SATA RAID setups. With Realtek 2.5Gb Ethernet and ASUS LANGuard protection, networking is quick and dependable. The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard's integrated Wi-Fi 6 and Bluetooth 5.3 provide high-speed wireless communication over dual 2.4/5GHz bands. The rear I/O panel has eight USB ports, including USB 10Gbps Type-A and Type-C, HDMI, audio jacks, and a BIOS FlashBack button for simple firmware changes. The ASUS Z790-AYW WIFI W II ATX motherboard's front panel features nine more USB ports, including a USB 10Gbps Type-C header. The audio is powered by a Realtek 7.1 surround sound codec with superior capacitors and shielding for immersive sound. The ASUS WIFI motherboard offers complete RGB customization via Aura Sync and has numerous Gen 2 addressable RGB connectors. Cooling is improved with multiple fan headers, AIO pump support, and dedicated VRM and M.2 heatsinks. The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard also includes ASUS-exclusive innovations like Q-Latch, Q-DIMM, Q-LED, and a pre-installed I/O shield for easy installation. It is designed in the ATX form factor and runs Windows 10 and 11, offering it a future-proof base for any performance-driven PC build.
