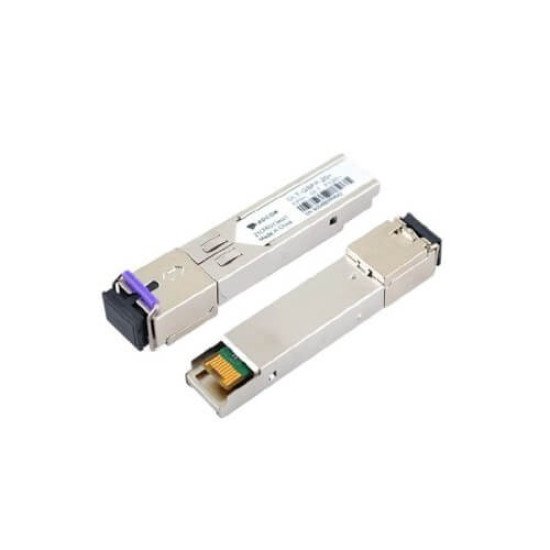

BDCOM EPON PON Module | OLT-GSFP-20+++

BDCOM EPON PON Module | OLT-GSFP-20+++

Product Description

The BDCOM OLT-GSFP-20+++ EPON PON Module is a high-performance SFP optical transceiver designed for EPON OLT (Optical Line Terminal) deployments in FTTH and passive optical network infrastructures. This module supports symmetric 1.25Gbps data transmission over a single optical fiber with a transmission distance of up to 20 kilometers. Built for carrier-grade EPON applications, it delivers stable optical performance, high receiver sensitivity, and reliable long-distance connectivity for ISPs, telecom operators, and enterprise fiber network deployments. Its hot-swappable design and IEEE 802.3ah compatibility make it an ideal solution for modern EPON broadband infrastructures.

Key Features & Specifications

• Speed: 1.25Gbps Symmetrical EPON Transmission
• Ports: 1× SC Optical Connector
• Wireless Standard: Not applicable
• CPU/RAM: Not applicable
• Switching Capacity: 1.25Gbps
• Forwarding Rate: 1.25Gbps Full Duplex
• PoE Standard & Budget (if applicable): Not applicable
• Additional Features:
  • IEEE 802.3ah 1000BASE-PX20+++ EPON compliant
  • Supports up to 20km transmission distance
  • TX Wavelength: 1490nm
  • RX Wavelength: 1310nm
  • Single-fiber bidirectional transmission
  • Digital Diagnostic Monitoring (DDM/DDMI)
  • Hot-swappable SFP form factor
  • High optical output power up to +10dBm
  • Receiver sensitivity up to -30dBm / -32dBm
  • Supports passive optical network infrastructure
  • Operating temperature: -10°C to 70°C
  • Low power consumption
  • RoHS compliant
  • Durable industrial-grade metal housing

Performance & Use Case

Ideal for:

• EPON OLT deployment
• FTTH broadband infrastructure
• ISP fiber optic networking
• Telecom passive optical networks

Handles:

• Stable long-distance EPON transmission
• Single-fiber bidirectional communication
• High-density ONU connectivity
• Carrier-grade optical networking

⚠️ Not recommended for:

• GPON network deployment
• Standard Ethernet RJ45 networking
• Short-range copper networking
• Wireless networking environments

Pros & Cons

✅ Pros

• Stable 1.25Gbps EPON performance
• Supports up to 20km fiber transmission
• High receiver sensitivity
• Hot-swappable easy installation
• DDM/DDMI monitoring support
• Reliable carrier-grade optical performance

❌ Cons

• Limited to EPON environments only
• Requires compatible OLT hardware
• No RJ45 copper connectivity
• Not suitable for GPON systems

Summary

The BDCOM OLT-GSFP-20+++ EPON PON Module is an excellent solution for ISPs, telecom operators, and fiber network professionals who require reliable and long-distance EPON connectivity for FTTH deployments. Its stable optical performance, high transmission range, and IEEE EPON compliance make it a dependable choice for modern passive optical network infrastructures.
