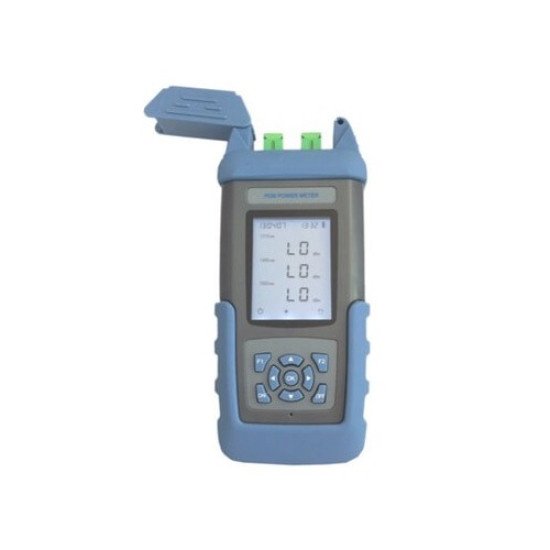

Senter ST800K-UA Power Meter With VFL

Senter ST800K-UA Power Meter With VFL

Product Description

The Senter ST800K-UA Power Meter with VFL is a professional fiber optic testing device designed for FTTH, telecom, ISP, CATV, and optical network maintenance applications. It combines an Optical Power Meter (OPM) and Visual Fault Locator (VFL) in a single portable device, allowing technicians to accurately measure optical signal power and quickly identify fiber faults, bends, or breaks using a built-in red laser source. Its rugged design and multi-wavelength support make it ideal for field testing and fiber troubleshooting.

Key Features & Specifications

• Speed:
  • Fast Optical Signal Detection & Fiber Fault Identification
• Ports:
  • FC / ST / SC / LC Connector Support
• Wireless Standard:
  • Not Applicable
• CPU/RAM:
  • Digital Optical Measurement Processing
• Switching Capacity:
  • Not Applicable
• Forwarding Rate:
  • Not Applicable
• PoE Standard & Budget:
  • Not Applicable
• Additional Features:
  • Optical Power Meter & VFL Combo
  • Wavelength Range: 800~1700nm
  • Standard Wavelengths:
    • 850 / 1300 / 1310 / 1490 / 1550 / 1625nm
  • Power Test Range:
    • -50~+26 dBm
  • Built-in 650nm Visual Fault Locator
  • InGaAs Detector
  • USB Data Upload Support
  • Store Up to 1000 Test Records
  • LCD Backlight Display
  • Rechargeable Battery Support
  • Auto Power Off Function

Performance & Use Case

Ideal for:

• FTTH fiber installations
• ISP network maintenance
• Telecom troubleshooting
• Fiber optic cable testing

Handles:

• Optical power measurement
• Fiber fault detection
• Multi-wavelength fiber testing
• Continuous field operation

⚠️ Not recommended for:

• OTDR distance analysis
• Advanced laboratory fiber certification
• Automated industrial testing systems

Pros & Cons

✅ Pros

• Built-in OPM and VFL functions
• Supports multiple fiber wavelengths
• Stores up to 1000 test records
• Rugged portable design
• USB data upload support

❌ Cons

• Manual operation required
• Larger than mini OPM devices
• No OTDR functionality

Summary

The Senter ST800K-UA Power Meter with VFL is a reliable and professional fiber optic testing tool ideal for FTTH technicians, telecom engineers, and ISP professionals needing accurate optical power measurement and fast fiber fault detection in field environments.
