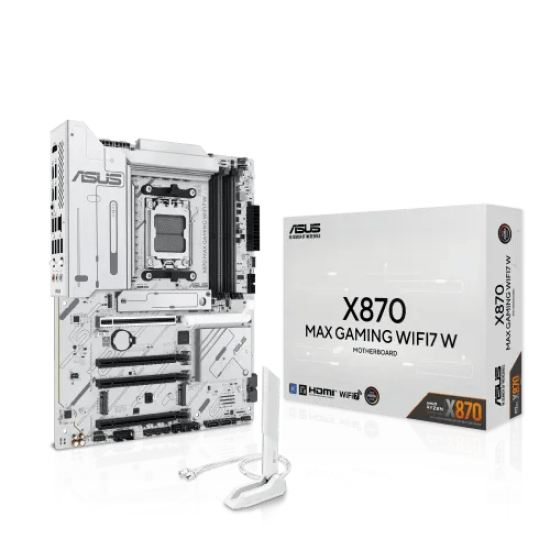

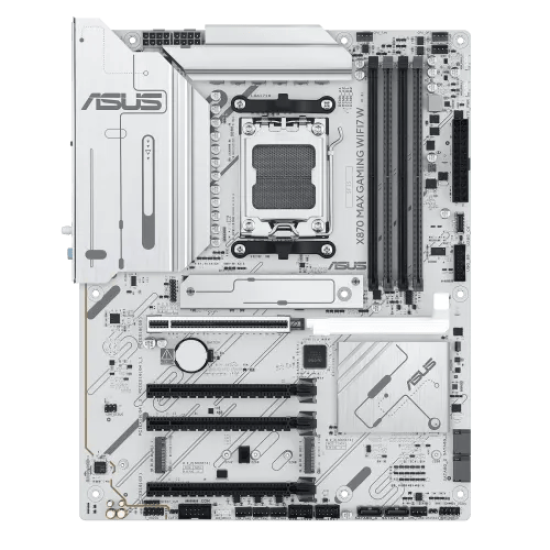

Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard

Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard

The Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard is a powerhouse platform designed for elite gamers and creators, supporting AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket. Built on the cutting-edge AMD X870 chipset, the Asus X870 MAX GAMING WIFI7 W delivers next-gen performance with support for up to 256GB of DDR5 RAM across 4 DIMM slots, overclockable to 8000+ MT/s. It features dual-channel architecture, ECC/Non-ECC support, and memory tuning through AMD EXPO and ASUS AEMP. For graphics, it includes one HDMI 2.1 port and two USB4 Type-C ports with DisplayPort 1.4a, enabling up to 4K@60Hz video output depending on the processor. This Asus X870 MAX GAMING WIFI7 W ATX Motherboard provides extensive expandability with one PCIe 5.0 x16 slot (for Ryzen 9000/7000), additional PCIe 4.0 and 3.0 slots, and three M.2 slots with PCIe 5.0 and 4.0 interface, plus four SATA 6Gb/s ports supporting RAID 0/1/5/10 (on Ryzen 9000). Note: certain ports share bandwidth and can be managed via BIOS settings. For connectivity, the Asus X870 MAX GAMING WIFI7 W includes 2 x USB4 (40Gbps) ports, 10 rear USB ports, 7 front USB ports (including USB 20Gbps Type-C with 30W fast-charging), and Realtek 2.5Gb Ethernet. Wireless features include Wi-Fi 6 (802.11ax) and Bluetooth 5.2. Audio is driven by Realtek 7.1 Surround Sound High Definition Audio, offering jack detection, multi-streaming, and 24-bit/192kHz quality with premium components. The Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard also features extensive internal I/O including multiple fan headers, RGB Gen 2 headers, TPM, S/PDIF, and COM ports. DIY-friendly features like Q-LED, M.2 Q-Latch, PCIe Slot Q-Release, and a pre-mounted I/O shield make setup easy, while ASUS 5X Protection III ensures system durability. Enhanced thermal solutions, Aura Sync RGB, and bundled software like Armoury Crate and Fan Xpert 4 make the Asus X870 MAX GAMING WIFI7 W Motherboard a top-tier choice for performance and reliability.
