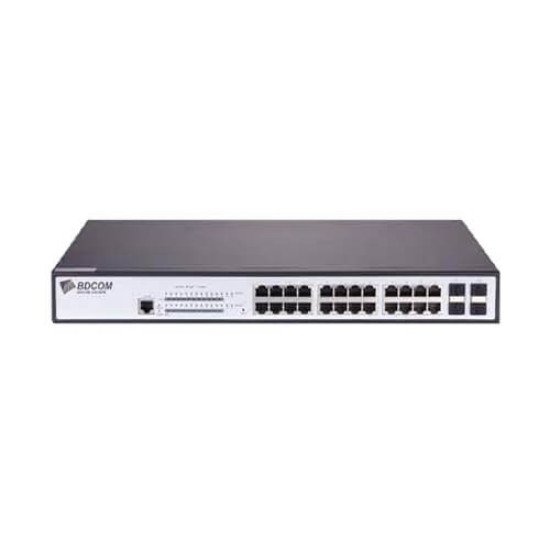

BDCOM S2528P 24-Port Gigabit PoE Managed Switch

BDCOM S2528P 24-Port POE Managed Switch

Product Description



The BDCOM S2528P is a high-performance enterprise-grade 24-port Gigabit PoE managed switch designed for large business networks, ISPs, and surveillance systems. It delivers both power and data through Ethernet cables, simplifying infrastructure while maintaining high-speed connectivity. Built on BDCOM’s BDROS platform, it supports advanced Layer 2/Layer 3 Lite features like VLAN, QoS, ACL, and routing, making it a powerful solution for secure, scalable, and efficiently managed networks.

Key Features & Specifications

• Speed: 10/100/1000Mbps (Full Gigabit)
• Ports: 24 × Gigabit PoE Ports + 4 × Gigabit Combo (RJ45/SFP)
• Switching Capacity: Up to 64Gbps
• Forwarding Rate: Up to 42Mpps
• MAC Address Table: 8K–16K
• CPU/RAM: Not specified (enterprise chipset)
• PoE Standard: IEEE 802.3af/at
• PoE Power Output: Up to ~370W–400W total
• Additional Features:
  • VLAN, QoS, ACL, QinQ support
  • Web, SNMP, CLI, Telnet, SSH management
  • STP/RSTP/MSTP for network stability
  • 6KV lightning protection
  • Rack-mountable metal design with cooling fan

Performance & Use Case

Ideal for:

• Large CCTV/IP surveillance systems
• Enterprise and ISP networks
• Campus or multi-floor deployments
• Wireless access point and VoIP setups

Handles:

• High-speed Gigabit data transfer
• Power + data via single Ethernet cable
• Advanced traffic control (QoS, VLAN)
• High-density multi-device networking

⚠️ Not recommended for:

• Small home or basic office use
• Users needing simple plug-and-play setup
• Data center core switching environments

Pros & Cons

✅ Pros

• 24 Gigabit PoE ports for large deployments
• Very high PoE power budget (~400W)
• Advanced management features (VLAN, QoS, ACL)
• High switching capacity (64Gbps)
• Suitable for enterprise and ISP use

❌ Cons

• Requires networking knowledge to configure
• Higher cost than unmanaged switches
• Cooling fan (not silent)

Summary

The BDCOM S2528P is a powerful managed PoE switch built for enterprise-level networking. With high-speed Gigabit ports, strong PoE capacity, and advanced management features, it’s an excellent choice for businesses, ISPs, and large surveillance systems that require performance, scalability, and full network control.
