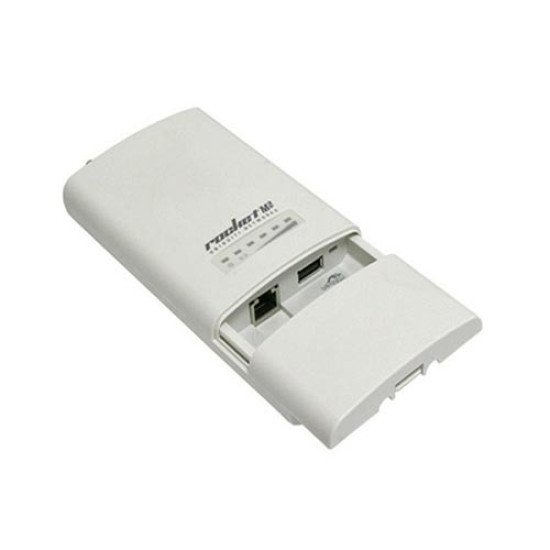

Ubiquiti Rocket M2 2.4GHz High Power airMAX Base Station

Ubiquiti Rocket M2 2.4GHz High Power 2x2 MIMO AirMax TDMA BaseStation

Product Description

The Ubiquiti Rocket M2 is a high-power outdoor base station designed for long-range wireless networking using airMAX TDMA technology. Operating on the 2.4GHz band, it is optimized for point-to-point (PtP) and point-to-multipoint (PtMP) deployments, delivering stable, low-latency connectivity even in high-interference environments. With its modular design that integrates seamlessly with airMAX sector and dish antennas, it is ideal for WISP networks, backbone links, and large-scale outdoor wireless infrastructure.

Key Features & Specifications

• Single-Band Wi-Fi: 2.4GHz
• Wireless Standard: IEEE 802.11b/g/n (airMAX TDMA)
• Speed: Up to 150+ Mbps real throughput
• Ports: 1× 10/100 Mbps Ethernet (PoE supported)
• CPU: Atheros MIPS 24Kc (~400 MHz)
• RAM: 64MB
• Storage: 8MB Flash
• MIMO: 2×2 MIMO technology
• RF Connectors: 2× RP-SMA (for external antennas)
• Range: Up to 50 km+ (line-of-sight)
• Power: 24V Passive PoE (adapter included)

Performance & Use Case
Ideal for:

• WISP base station deployments
• Long-distance point-to-point (PtP) links
• Point-to-multipoint outdoor networks
• Wireless backbone infrastructure

Handles:

• 100+ clients using TDMA scheduling
• Long-range connectivity over tens of kilometers
• Stable throughput in interference-heavy environments
• High-capacity outdoor wireless distribution

⚠️ Not recommended for:

• Indoor Wi-Fi or home networking
• High-speed gigabit or Wi-Fi 6 networks
• Plug-and-play beginner setups

Pros & Cons
✅ Pros

• Excellent long-range performance (up to 50km+)
• Reliable airMAX TDMA reduces interference
• Flexible with multiple antenna options
• Scalable for ISP and large deployments

❌ Cons

• Fast Ethernet only (no Gigabit port)
• Single-band (2.4GHz only)
• Requires technical expertise for setup
• Older 802.11n technology

Summary
The Ubiquiti Rocket M2 is a powerful and scalable outdoor base station ideal for ISPs and long-distance wireless networking projects. It excels in PtP and PtMP deployments where stability, range, and efficiency are more important than modern Wi-Fi speeds.
