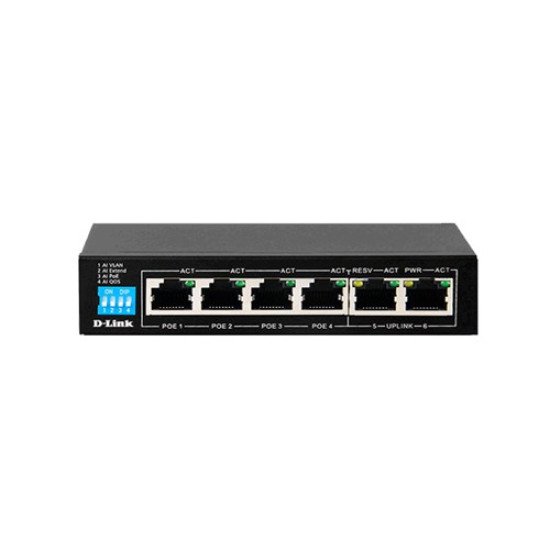

D-Link DES-F1006P-E 6-Port Unmanaged PoE Switch

D-Link DES-F1006P-E 5-Port POE Switch

Product Description



The D-Link DES-F1006P-E is a compact unmanaged PoE switch designed for CCTV surveillance systems, small office networking, and IP device connectivity. It comes with 4 PoE+ Ethernet ports and 2 uplink ports, allowing both data and power transmission through a single cable. With support for long-range PoE transmission up to 250 meters, VLAN isolation mode, QoS optimization, and a 60W PoE budget, this switch is an excellent solution for IP cameras, VoIP phones, and wireless access points.

Key Features & Specifications

• Speed: 10/100Mbps Fast Ethernet
• Ports:
  • 4 × 10/100Mbps PoE+ RJ45 Ports
  • 2 × 10/100Mbps Uplink Ports
• Switching Capacity: 1.2Gbps
• Forwarding Rate:
  • 10M: 14,800pps
  • 100M: 148,800pps
• PoE Standard: IEEE 802.3af / 802.3at PoE+
• PoE Power Budget: 60W total, up to 30W per port
• MAC Address Table: 2K–8K entries (varies by source)
• CPU/RAM: Not applicable (unmanaged switch)
• Additional Features:
  • Long-range PoE transmission up to 250m
  • VLAN isolation mode for security
  • QoS optimization for CCTV and VoIP
  • PoE Reset / Watchdog function
  • 6KV lightning surge protection
  • Fanless silent design
  • Plug & Play unmanaged setup

Performance & Use Case

Ideal for:

• CCTV/IP surveillance systems
• Small office networking
• Wireless access point deployment
• VoIP phone connectivity

Handles:

• Power + data through one Ethernet cable
• Stable IP camera streaming
• Long-distance PoE deployment
• Continuous 24/7 operation

⚠️ Not recommended for:

• Gigabit networking environments
• Large enterprise deployments
• Advanced managed networking setups

Pros & Cons

✅ Pros

• 4 PoE+ ports with 60W power budget
• Long-range transmission up to 250m
• Plug-and-play easy installation
• VLAN and QoS support for CCTV
• Fanless silent operation

❌ Cons

• Limited to 10/100Mbps speeds
• No advanced Layer 2/3 management
• Limited PoE budget for high-power devices

Summary

The D-Link DES-F1006P-E is a reliable and budget-friendly PoE switch designed for surveillance and small business networking. With long-range PoE support, VLAN isolation, QoS optimization, and simple plug-and-play functionality, it is an excellent choice for IP camera systems and office network expansion.
